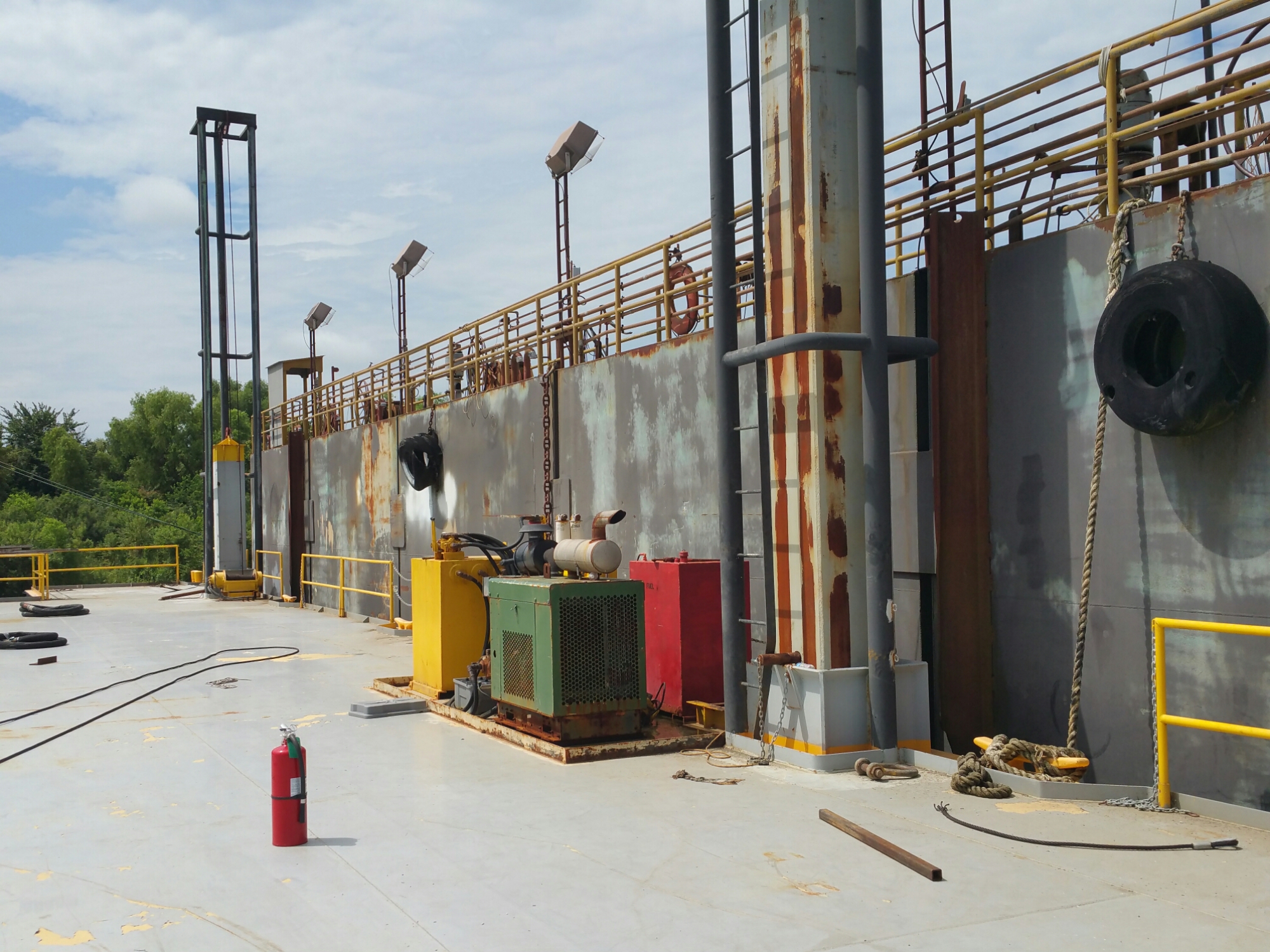

120′ x 45′ Quarters Spud Barge

120x45x7 spud barge

30 ton hydraulic crane

80 ft. box boom

diesel power unit

Living quarters for up to 20 men,

2-80kW diesel generators

600 gallon diesel storage

30,000 gallon water storage

diesel driven hydraulic spud unit with 2-hydraulic spud winches

40 ft. spuds

Below deck storage

GOM

$950k

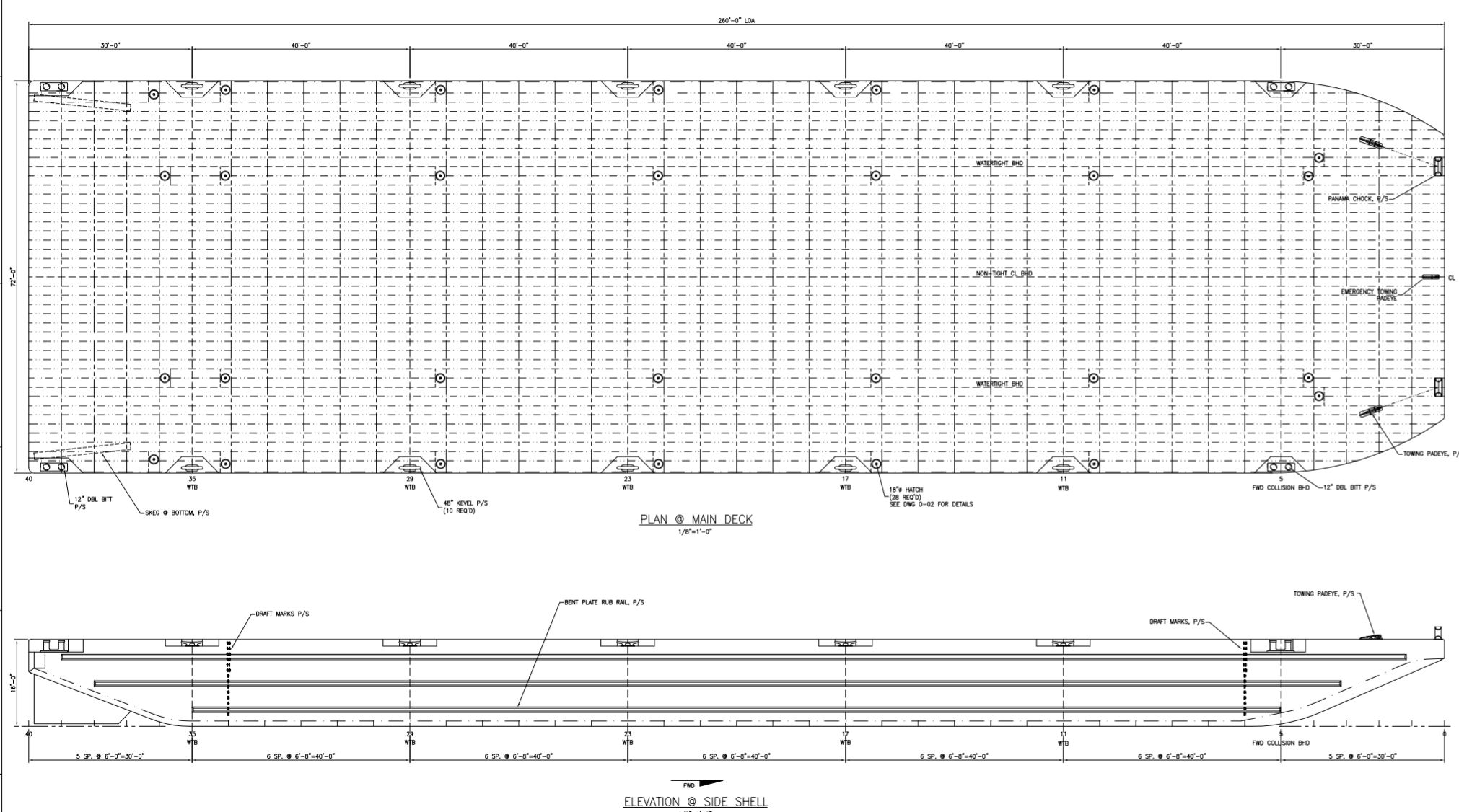

260′ x 72′ Deck Barge

Capture Type : Deck Barge

Year Built : 2010’s

Flag/Port of Registry : USA

Class/Classification : ABS/ A1

Length Overall : 260.0 feet (79.24 meters)

Breadth : 72.0 feet (21.95 meters)

Depth : 16 feet (4.88 meters)

Max Draft : 12.54 feet (3.83 meters)

Approximate Light Ship Weight : 1034.73 LT (1051.33 Metric Tons)

Approximate Cargo Capacity at Max Load Line : 5107.12 LT (5189 Metric Tons)

Approximate Deck Loading : 5000 lbs/square foot (24 metric tons/square meter)

Approximate Transverse Bulkhead : 6 Longitudinal Bulkhead : 3

No. of Compartments : 28

Price $3MM

250 x 72 Deck Barge

BUILD DETAILS

90’s Built

BARGE MEASUREMENTS

250’ Length

72’ Width

16’ Height

LOAD INFORMATION

Design Deck Load–2000 lbs. PSF

Cargo Capacity at load line–5312 short tons

Load Line Draft–12’ 9-1/16”

Current Loadline through Jan ’18

GOM

$1.95MM

140 x 40 Spud Barge

140′ x 40′ x 10′

35′ Spuds In Tower

2014 Build, Never Used

1 Rake and, 9 Main Compartments With Tracking Bulkheads

10′ x 20′ Keyway

$550k
