55′ x 20′ x 7′
(2) 8v71 Detroit
514 Gears
Running Condition
GOM
$295k OBO
600 HP Tug
Category Archives: * New Listings For Sale *
4000 HP Tug
97′ x 29′ x 12′
(2) EMD 16-645 CE
FAULK Gears
40KW GMs
15 HP Capstan
GOM
$400k Negotiable
110 x 48 x 9′ Deck Barge
East Coast
New galvanized manways
Needs blast and paint and port knuckle wrap
$170k
900 HP Model Bow
49’ x 19’ twin screw model bow
(2) Cummins NTA 855, TD 514 4.5:1- 900hp
Sub M Compliant
New engines, shafts, gears, shaft seals, bearings, elec. Deck winches, galley upgrades.
South East USA
POR
2000 HP Tugboat
Late 1970s Build
72.5′ Length x 24.2′ Beam x 9.5′ Depth x 46.6′ Height
Sub M Compliant No COI
(2) CAT C32 – TIER 2 @ 2000 HP
(2) TWIN DISC 540 @ 5:1
SMATCO DRUM WITH POCKET DRUM / GM 4-71 / 1.5″ x 1,800′
(2) CAT C4.4 Generators
Water 4,000 gals Lube 250 gals Fuel 23,000 gals
East USA
POR
1700 HP Tugboat
- Late 70s Build
- 69′ x 26′ x 9.6′
- Sub M Compliant without COI
- (2) CAT C32 – TIER 2 1700 HP
- (2) TWIN DISC MG-5225DC/ 5:1
- SMATCO DRUM WITH POCKET DRUM / GM 4-71 / 1.5″ x 1,400′
- Capacities: 7,600 gals water, 300 gals lube 29,500 gals fuel
- East USA
- $1,365,000.00
2000 HP Pushboat w COI
- 2000 HP
- Built 1976
- Length 70’
- Breadth 26’
- Height 45’
- Heavy Draft 9.3’
- Eye Level 25’
- Main Engines: Cummins KTA-38-M1
- Fuel Capacity 20,000
- COI Issued 2019
- GOM
- POR
3200 HP Pushboat
100′ x 34″ x 11′
2019 Build
MTU12V4000 (2)
88×67″ Wheels
Twin Disk 5600DR @ 6.6:1
8’6″ Draft
Gulf of Mexico
$7.8MM
400 HP Truckable
Early 2000s built
(2) Perkins Branded Cat ME @ 200 HP ea
7KW Kubota Gen
TD 509 Gears @ 3/1
East Coast USA
135k
140 x 40 Spud Barge
140′ x 40′ x 10′
35′ Spuds In Tower
2014 Build, Lightly Used
1 Rake and, 9 Main Compartments With Tracking Bulkheads
10′ x 20′ Keyway
$440k
120′ x 45′ x 7′ Spud Barge
120′ x 45′ x 7′
Tracking Bulkheads
80′ Round Spuds
4 Wells
A Condition No Doublers
Fresh Paint and Zink
Mid River USA
$355k
120′ Crewboat
Bring all offers!
140′ Crewboat 2013 Build
140′ x 30′ x 12′
81′ x 26′ Deck Space
(4) Cat C-32 Main Engines
17k Gal Fuel, 18k Gal Water Tranferable
GOM USA
POR
150′ DP1 Supply Boat
Gulf of Mexico USA
Make an Offer
170′ Mini Supply Boat
| Builder | Master Boats |
| Gross Tonnage | 99 |
| Net Tonnage | 67 |
| Year Built | 2005 |
| USCG Inspection | Yes |
| ABS Loadline | Yes |
|
DIMENSIONS |
|
| Length | 170′ |
| Beam | 36′ |
| Depth | 12′ |
| Clear Deck | 100’x30′ |
| Clear Deck Sq Ft | 3000 sq. ft. |
| Deck Cargo | 500 Long Tons |
|
PROPULSION |
|
| Main Engine | (2) Caterpillar |
| Model | 3508B |
| Max HP | 1750hp@1200rpm |
| Steering | Electronic/Hydraulic |
| Reduction Gear | Twin Disc-MG6690 |
| Bow Thruster | (1) Omega 1170-450 Hp |
| Speed | 12 Knots |
| Propellers | 4 BLD BRZ |
|
CAPACITIES |
|
| Fuel Capacity | 47,800/137,640 Gals |
| Ballast Water | 74,200 Gals |
| Liquid Mud | 89,040/2,120 Bls |
| Potable Water | 7,400 Gals |
| Lube Oil | 1,473 Gals |
| Dirty Oil | 1,502 Gals |
| Sewage | 2,000 Gals |
| Hydraulic Oil | 300 Gals |
| Fire Monitor | 1200 Gpm |
| Anchor | 2-1500 Lbs |
|
ACCOMODATIONS |
|
| Certified to Carry | 20 |
| Berths | 20 |
| Walk-In Cooler | Yes |
| Walk-In Freezer | Yes |
| A/C & Heater | 10 Tons |
|
GENERATORS |
|
| Two (2) 175 kw | CAT C-9 |
| Voltage | 480 |
GOM USA
POR
300′ x 90′ ABS Submersible Barge
300′ x 90′ x 22′
Fresh 5 year ABS in 2020
12,231 LT Displacement at LL
75KW Gen Set
Hydraulically Deployed Anchors
Ballast System Capacity of 1950 CBM/hour
GOM
POR
120×30 Deck Barge
120′ x 30′ x 6′
Centerline and three long
Rake/Rake
GOM
$80k
1500 HP Lugger Tug
Built 2015
67′ x 27′ x 9′
(2) Scania V8 @ 750 HP
TD5222 @5:1
64″ x 50″ Wheels
GOM
POR

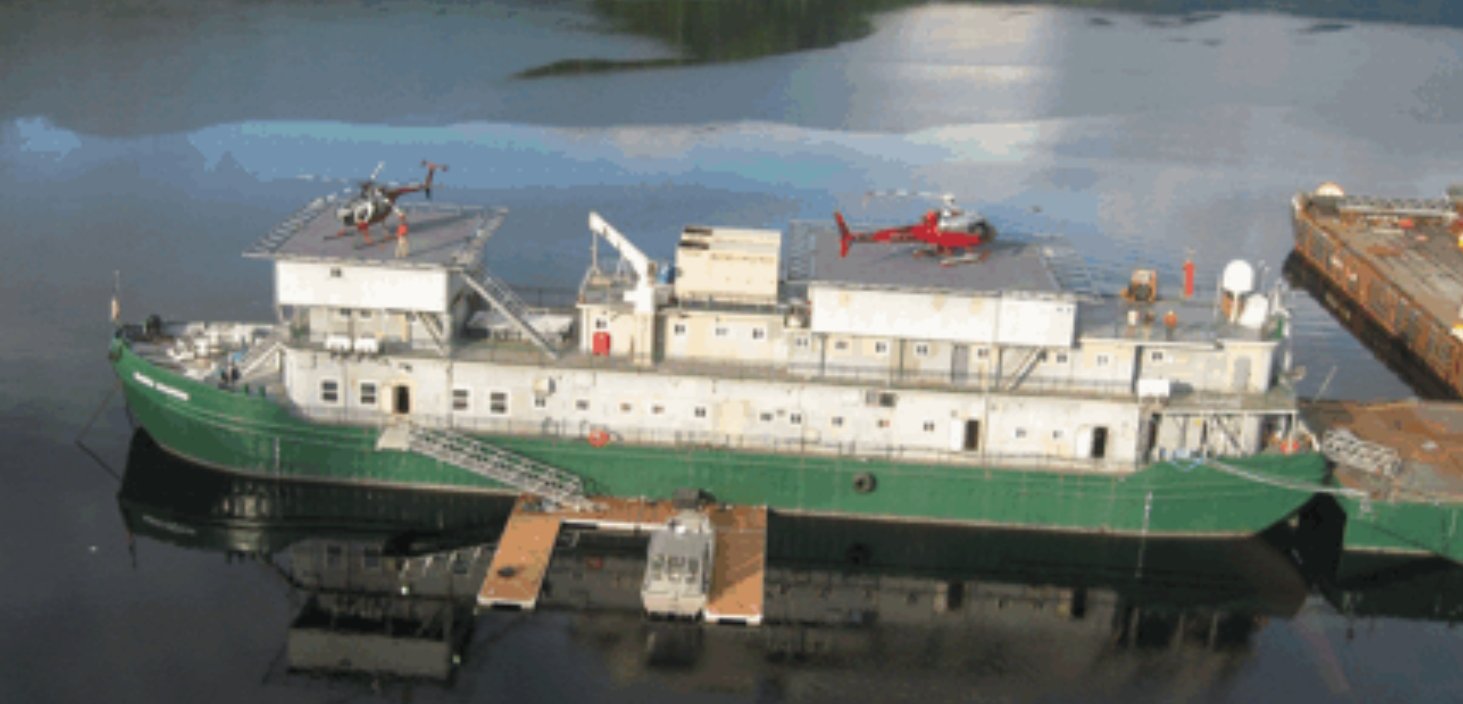

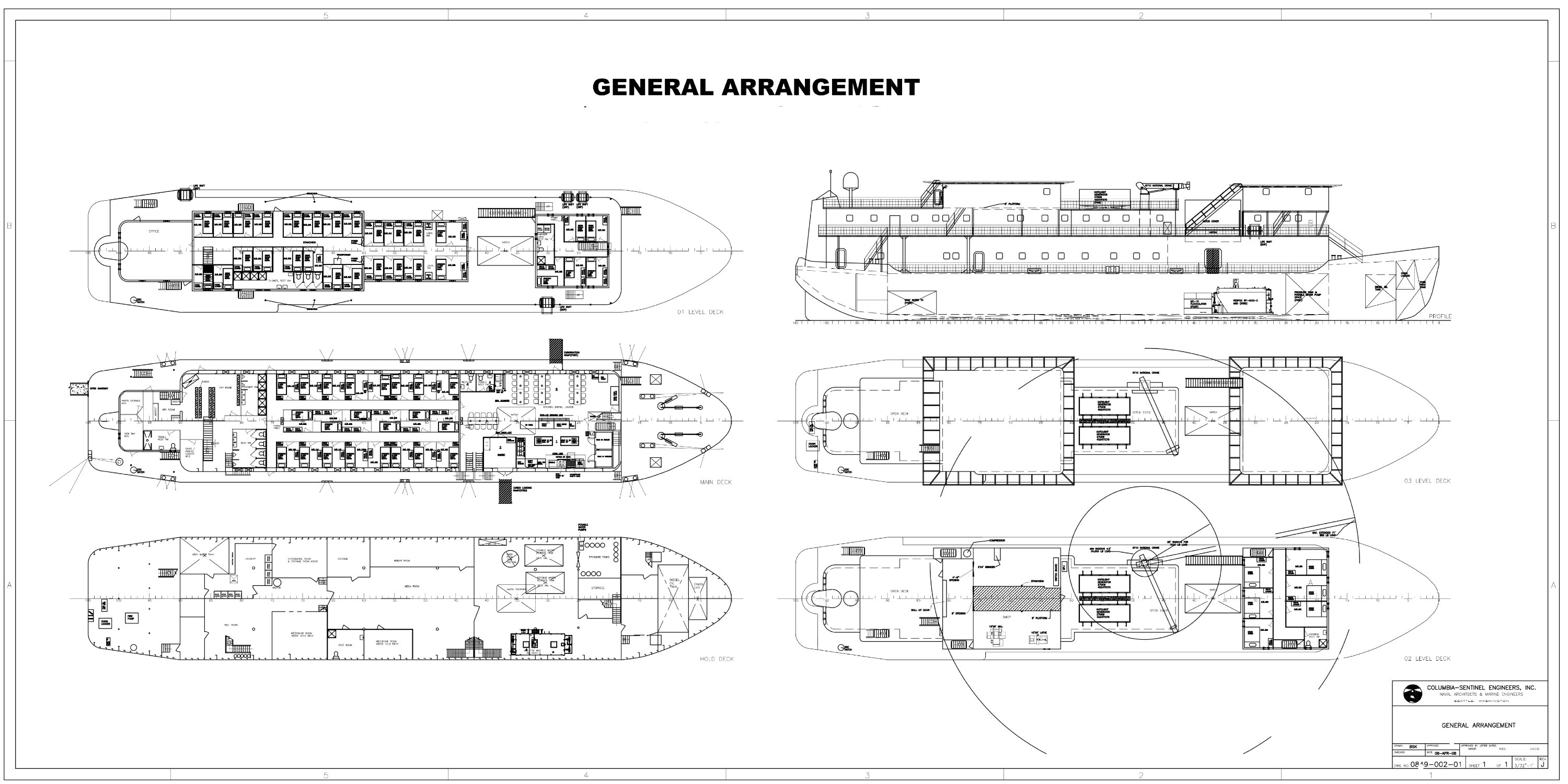

88 Person ABS Loadline Quarters Barge
210′ x 40′ x 18′
1270 GRT/NRT
88 Man Capacity
57 State Rooms
Panama Flag
Loadline Active
US Gulf of Mexico
POR

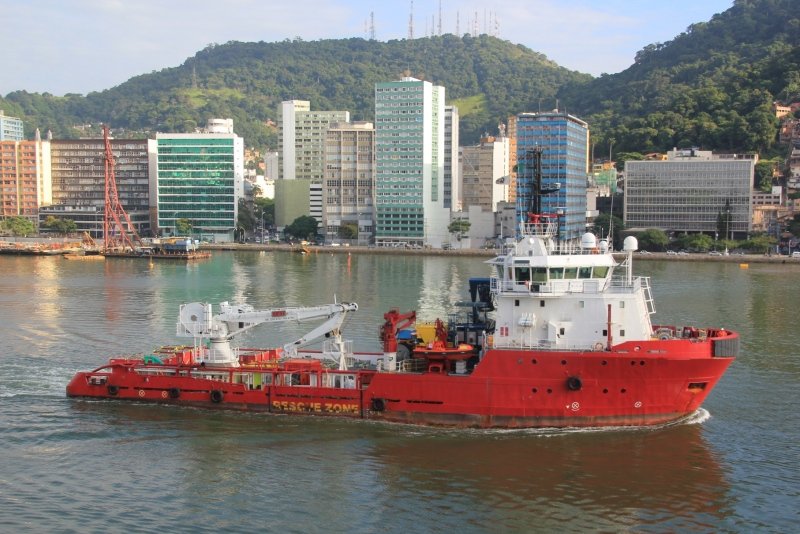

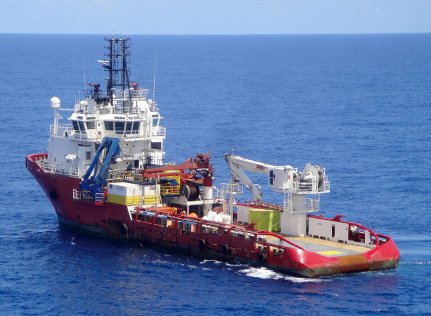

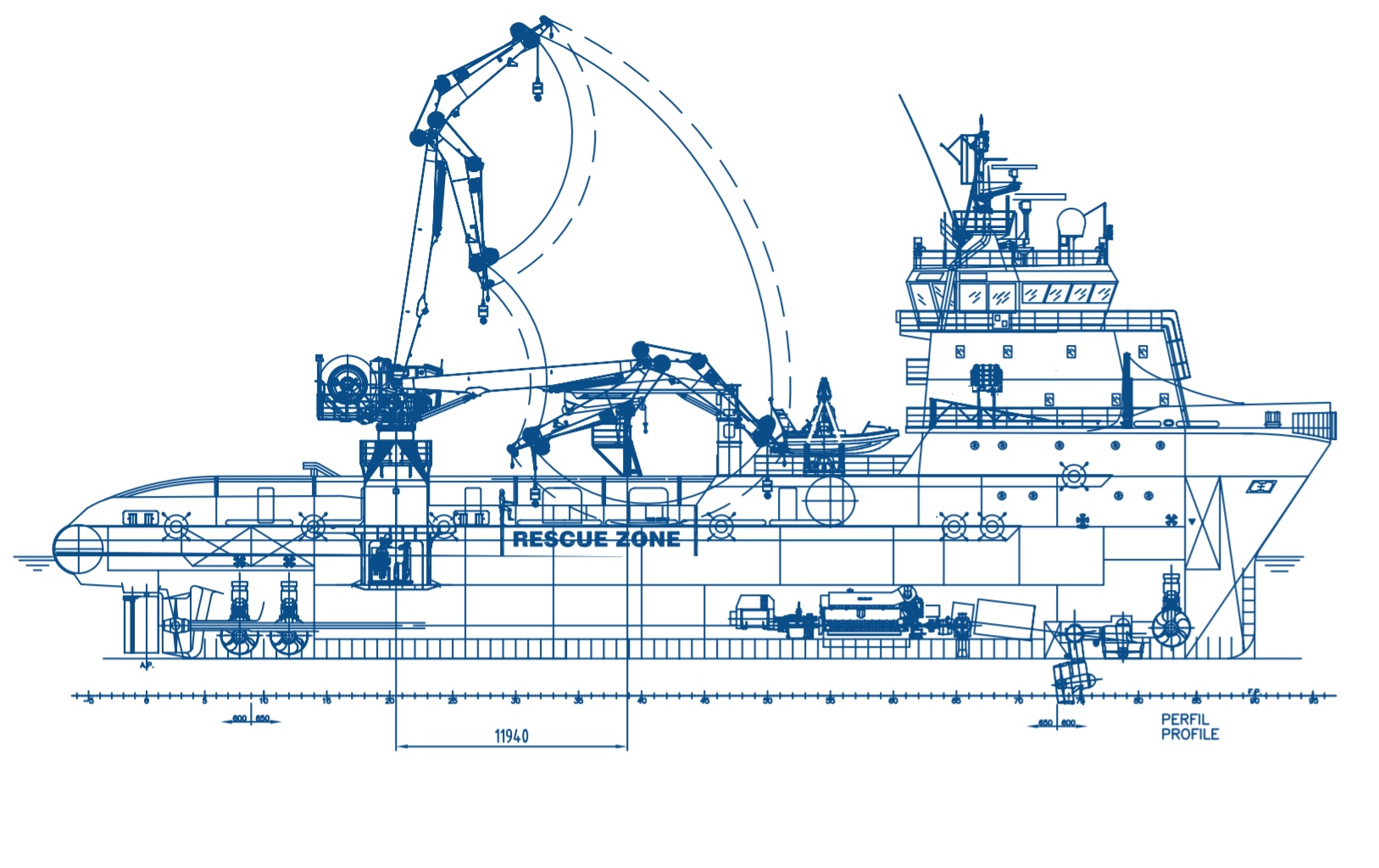

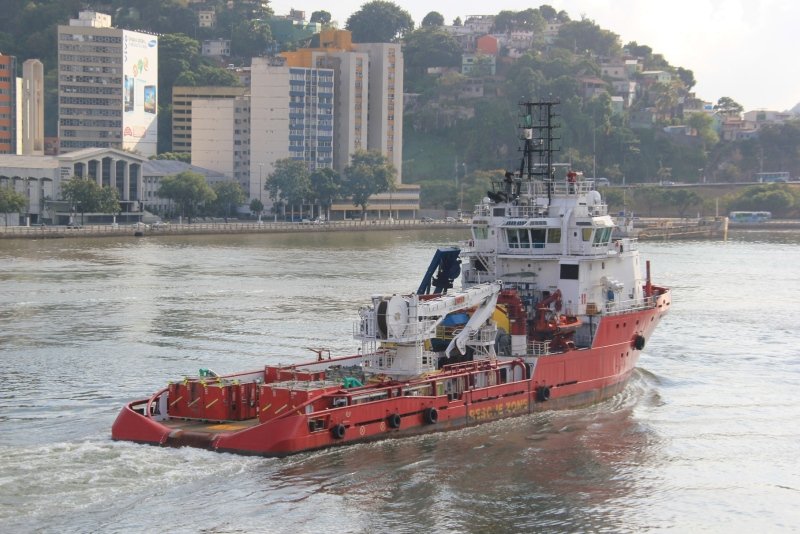

215′ Multi Functional Support Vessel
215′ x 51′ x 22′
IMO DP-II, DNV +1A1
2004 Build
Towing, Oil Recovery, ROV, Firefighting and Rescue Support Capabilities
Brattvaag Winch Double Drum 250 Tonnes
22t AHC Crane
Location Brazil
POR
