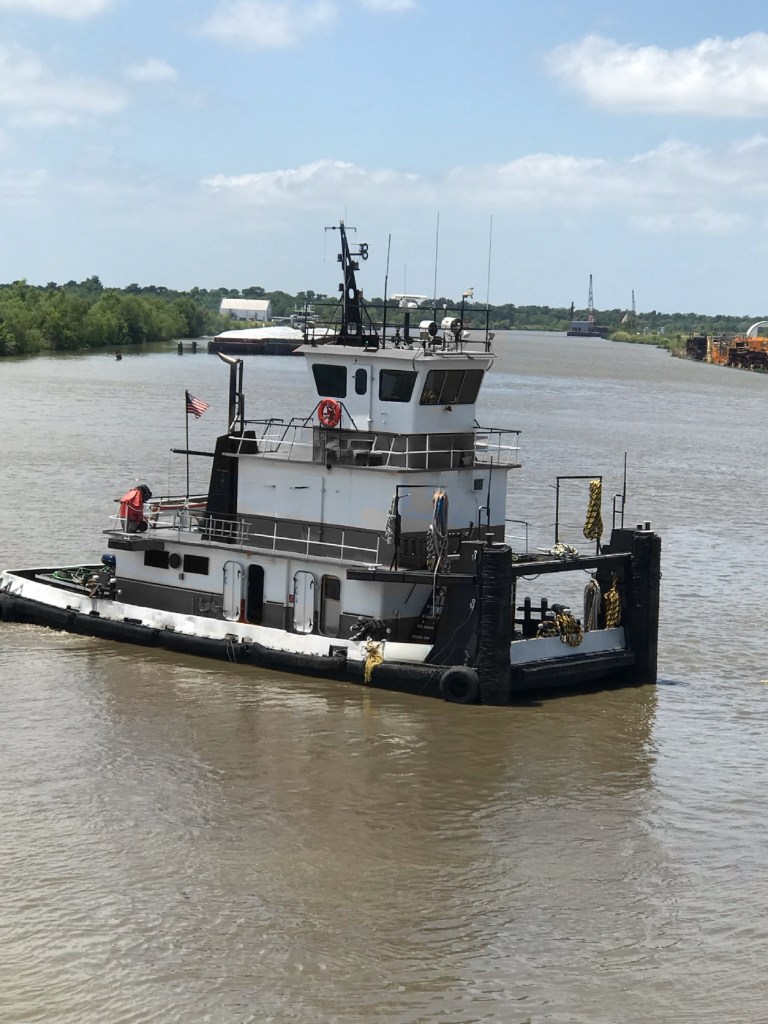

2400 HP Push Boat w COI

Posted on 2023 by Raleigh

Upper River USA

$2.5mm

3600 HP Ocean Tugboat

Posted on 2023 by Raleigh

107′ x 29.9′ x 13.7′

298 GRT 90 NT

2007 Build

Mexican Flagged

2 Cummins 50-M2 Main Engines

52 Ton Bollard Pull

40 Ton Double Drum Tow Winch

GOM

$2.4MM

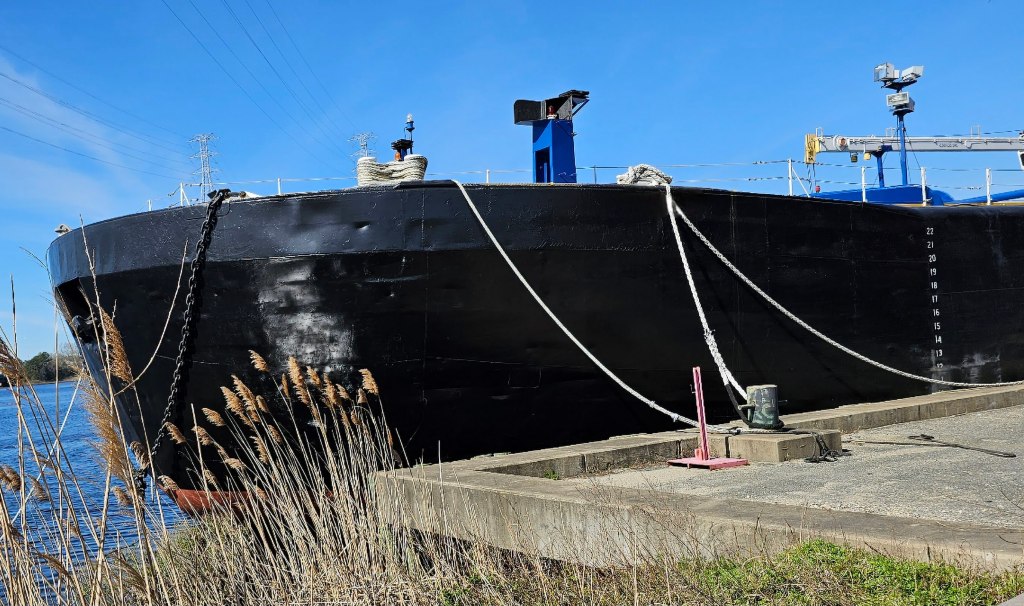

220′ x 60′ x 14′ ABS Ramp Barge

Posted on 2023 by Raleigh

98 Build

2500 psf deck loading

3250 LT @ Loadline

Lesser Antilles

$1.725mm

52m Trinity Yacht Project

Posted on 2023 by Raleigh

Buyer can complete project on their own, or the current owner can complete the build to buyers specification.

Designed as a luxury six stateroom motoryacht with elevator service to all four decks, the semi-displacement 168’ Trinity Tri-Deck has a top speed of 23 knots, shallow draft of less than 8’, under 500 gross tonnage, and was constructed under ABS oversight and standards. In addition to the aluminum hull and superstructure which are approximately 95% complete, the vessel comes with a long list of inventory and parts including:

2 – MTU- 16V 4000 90- 3,750HP @ 2100 RPM, TIER I ENGINES; S/N 527105368 & 527105369 (New Engine Warranty begins at startup)
2 – ZF 7640 TRANSMISSIONS WITH 3.826:1 REDUCTION RATIO; S/N 50026324 & 50026325
2 – NORTHERN LIGHT 155 KW @ 1500 RPM- 50 CYCLE- SEA WATER COOLED
1- 4,000 LB. NAUTICAL STRUCTURES SWIVELING TENDER DAVIT
1- 4,000 LB. NAUTICAL STRUCTURES TELESCOPING GARAGE TENDER DAVIT
1- SET- GULF MED MARINE (Quantum)- MOD QC 1500 TWO FINS 3.0 sq. m. – “ZERO SPEED”
1- QUANTUM CENTRAL HYDRAULIC SYSTEM
1- WINEL SLIDING WATER TIGHT DOOR
1 – 50 TON DOMESTIC WATER COOLED CHILLER PLANT
1 – CONTAINER FULL OF MISCELLANEOUS PARTS

GOM

POR

240′ DP2 AHTS

Posted on 2023 by Raleigh

DIMENSIONS
Dimensions 240 ft. X 52 ft. X 18 ft. 5 in.

(73.15 m X 15.85m X 5.64 m)
Design Draft 15 ft. (4.57 m)
Draft (Maximum Operations) 15 ft. 8 in. (4.78 m)
Loadline Displacement 3,770.18 LT (3,830.68 MT)
Clear Deck 135 ft. x 44 ft. (41.15 m x 13.41 m)
Cargo Deck Area 5,940 sq. ft. (551.82 sq. m)
Deck Cargo Capacity 830 LT (843.32 MT)
Deadweight Tonnage 1,527 LT (1,551.50 MT)

CAPACITIES
Fuel Oil 178,576 gals. (675.98 cu. m)
Ballast 325,615 gals. (1,232.59 cu. m)
Fresh Water 23,068 gals. (87.32 cu. m)
Dry Bulk 5,120 cu. ft. @ 45 psi (144.98 cu. m @ 3.1 bars)
Liquid Mud 2,200 barrels (349.77 cu. m)

MACHINERY
Main Engines Three (3) EMD 20-645 E7, 10,800 BHP
Propulsion Three (3) CPP
Total Propulsion HP 13,200 HP
Bow Thrusters Two (2) 150TV-D Tunnel
Stern Thrusters One (1) 1,200 HP NASB/Ulstein 360° Jet
Azimuthing
Ship’s Service Generators Two (2) x 500 kW
Shaft Generators Three (3) x 2,400 HP/1,800 kW

TOWING AND ANCHOR HANDLING (DECK EQUIPMENT)
Winches Brattvaag BSL 350 W Double Drum with chain mouse
Line Pull 350 MT or 926,100 lb line pull or 926 KIPS
line pull per drum
Chain Lockers Two (2) x 6,000 ft. (1,828.8 m) of 3.5 in. (8.89 cm) chain each
Storage Reels Two (2) x 11,480 ft. (3,499.10 m) of 3 in. (7.62cm) wire
Wire Capacity Two (2) x 9,800 ft. (2,987.04 m) of 3 in. (7.62cm) wire per drum @ 350 MT

SPECIAL FEATURES
Shark Jaws One (1) x 350 MT
Tow Pins One (1) x 350 MT
Tuggers One (1) x 12-Ton Forward
Tuggers Two (2) x 10-Ton Aft
Positioning DP 2
Stern Rollers One (1) x 8 ft. x 6 ft.
Cranes Two (2) x 10 tons @ 30° radius
Firefighting Two (2) Monitors @ 12,500 GPM

ROV
ROV Schilling Robotics 200HP UHD rated for 4,000m

LIFE SAVING EQUIPMENT
Life Rafts Four (4) x 25-Man Life Rafts
Rescue Boat/Craft One (1) x Narwhal SV-400 SOLAS FRC

ELECTRONICS
Electronics Package Two (2) Furuno FR-2115 Radars, GMDSS, Iridium Satellite Phone, Marine Technologies Bridge Mate DP 2, Marine Technologies Bridge Mate Autopilot, Furuno Color-View Depth Sounder, Furuno VHF FM-8500 @ Winch Operator Panel, Seven (7) Color
Monitors, JRC NO2-127C Inmarsat-C Telex (GMDSS), SEA 222 Single Sideband Radio with Ringer, JRC NCH-802 Controller MF/HF Radio, JRC NCR-300A Navtex, Furuno GP150 GPS, Furuno FAI50 AIS

CLASSIFICATION
ABS Steel Tug and Supply Vessel
ABS Maltese Cross A1 (Towing Service)
ABS Maltese Cross AMS
ABS DP 2

ACCOMMODATIONS
Accommodations 34
